Quadramatic™ Batch Centrifuges from Western States
|

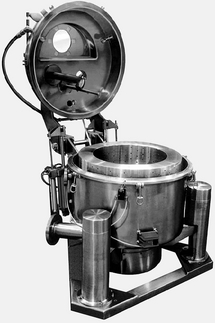

The Quadramatic™ is an under-driven, bottom discharging or top unloading centrifuge developing up to 2,000 gravities of filtering force. The Quadramatic™ centrifuge features the Monocut™ discharger which has a full length plow blade and removes the product in a single inward motion with no vertical travel. The fully perforated basket provides a very high drain rate to quickly separate the solid and liquid portions of the feed slurry. By properly specifying the filter and backing screen combination a wide range of particle sizes can be separated. The Quadramatic™ centrifuge is available in capacities from 0.1 ft³ to 33 ft³. Available in ruggest link suspension design or compact inertia pad design.
Design Features
- Solid 316L Stainless Steel Construction for all Wetted Parts
- Basket Safety Factor of 2.0
- Up to 2,000 "G" Force
- TEFC Electric Motor Drive
- PLC Controls
- Bottom Discharge
- Top Unloading
- "D" Door Curb Top Access
- Monocut™ Discharger
- Sealed Grease Lubricated Bearings
- Adjustable Feed Pipe
- Multi-Nozzle Wash Pipe
- Gyration and Vibration Protection
Other Available Design Features
- Materials of construction
Hastelloy
Inconel
Monel
Titanium
Alloy 20
Other exotic alloys
- Variable Frequency Drive
- NEMA-4X, NEMA-7&9 or Purged Controls
- Full Opening Top
- Lighted Sight Glass
- Top Unloading
- Air Knife Discharger for Complete Heel Removal
- External Blow-Back Device for Clearing the Filter Screens
- Wide Range of Wire and Cloth Filter Screens
- Mechanical or Electro-Chemical Polishing
- Multiple Custom Designed Feed and Wash Pipe Options
- Ultra-Sonic Non-Contact Cake Depth Detection
- 3A/USDA Sanitary Design
- Clean In Place (CIP) System
- Inert Atmosphere
- Internal Pressure from 5 To 50 Psig
- Heating and Cooling Jackets
Download PDF - Quadramatic Filtering Centrifuge
|
|
|
Dimensions and Specifications
Flat top illustrated; domed top available.
|
Features
- Solid 316 SST Construction
- No Cladding
- 2.0 Safety Factor Basket Design
- Tri-Mount "Cushn BAll Suspension"
- Long Life Bearing Assembly
- Continuos 24/7 Design Parameters
Options
- Quadra-Clean - CIP
- Full OPen Cover
- Bottom Discharge
- Bag Type (Top Unload)
- Special Alloy Contruction Coated
- Polished Interior/Exterior
- Inert Atmosphere
- Class 1, Div 1, Group C and D
- Pressure Tight Up To 5 PSIG
- Higher G-Forces Available
|
|

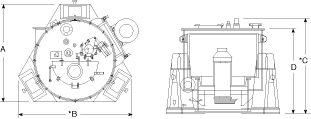

Quadramatic Dimensions
*Dimensions vary according to type of drive, top and discharge method selected.
Model
Dim. |
26x12 |
30x18 |
40x24 |
48x24 |
48x30 |
60x40 |
| A |
56 |
56 |
84 |
84 |
84 |
93 |
| *B |
64 |
64 |
100.5 |
100.5 |
100.5 |
115 |
| *C |
62 |
62 |
68 |
68 |
68 |
92 |
| D |
35 |
35 |
60 |
60 |
60 |
76 |
Pilot Plant Centrifuges
|
Model Number
|
Basket Size
inches/mm
|
Screen Area
Volume
|
Maximum RPM
|
Centrifugal
G-Force
|
Motor
|
|
Q-068
|
26 x 12 x 4
600 x 305 x 102
|
6.8 ft2 / 1.9 ft3
0.63 M2 / 54.4 liters
|
1560
|
900
|
15 - 30 HP
7.5 - 22 KW
|
|
Q-120
|
30 x 18 x 4
762 x 457 x 102
|
11.8 ft2 / 3.5 ft3
1.1 M2 / 96.4 liters
|
1450
|
900
|
40 - 50 hp
30 - 37 kw
|
Quadramatic Centrifuges
|
Model Number
|
Basket Size
inches/mm
|
Screen Area
Volume
|
Maximum RPM
|
Centrifugal
G-Force
|
Motor
|
|
Q-210
|
40 x 24 x 6
1016 x 610 x 152
|
20.9 ft2 / 8.9 ft3
1.95 M2 / 252.1 liters
|
1250
|
900
|
15 - 30 HP
|
|
Q-250
|
48 x 24 x 7
1219 x 610 x 178
|
25.12 ft2 / 12.5 ft3
2.3 M2 / 354.6 liters
|
1150
|
900
|
40 - 50 HP
|
|
Q-320
|
48 x 30 x 7
1219 x 762 x 178
|
31.4 ft2 / 15.7 ft3
2.9 M2 / 443.3 liters
|
1150
|
900
|
40 - 100 HP
|
|
Q-520
|
60 x 40 x 9
1524 x 1016 x 229
|
52 ft2 / 33.3 ft3
4.9 M2 / 945.3 liters
|
1000
|
850
|
50 - 150 HP
|
|
|
|
|
